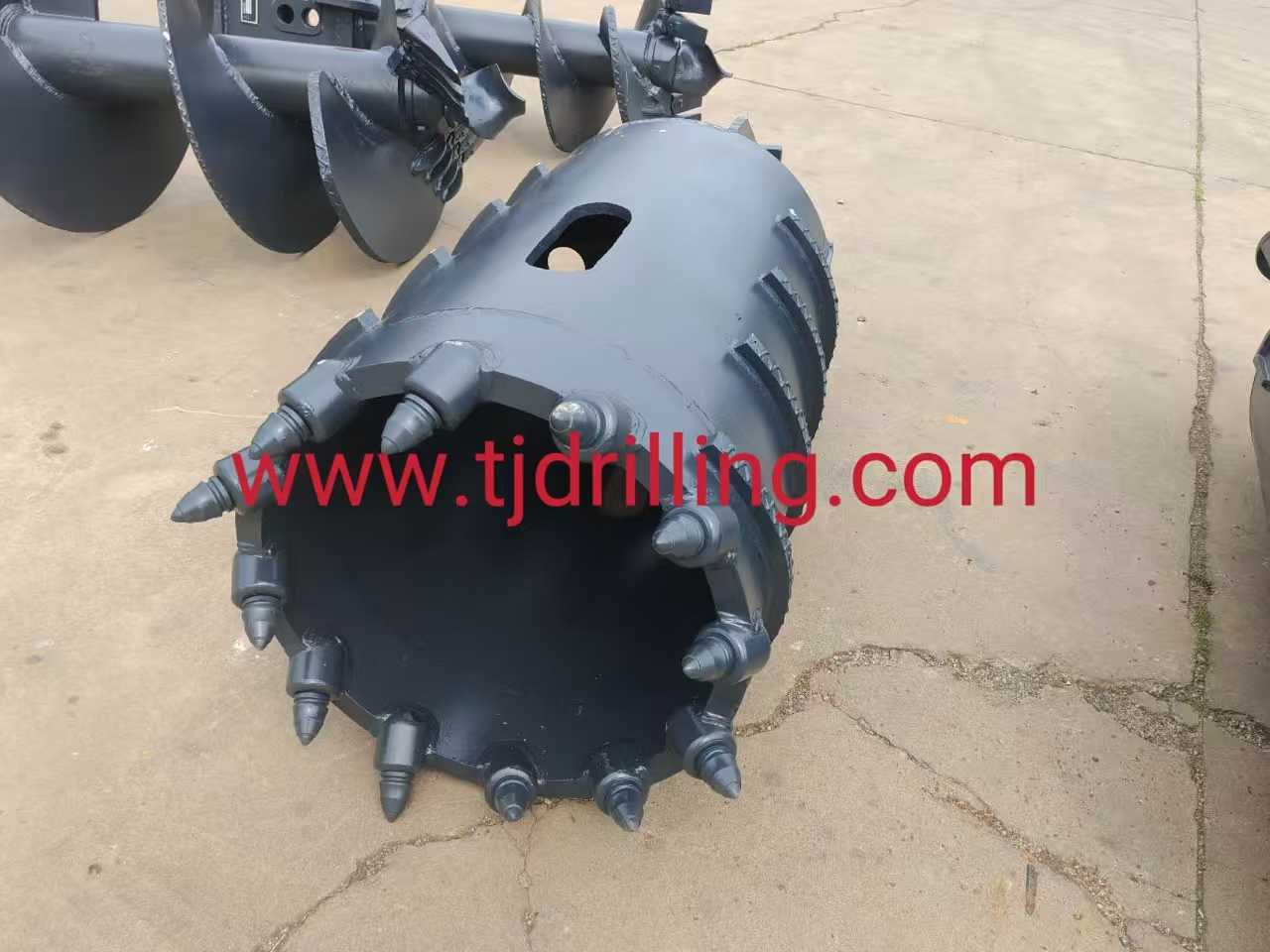

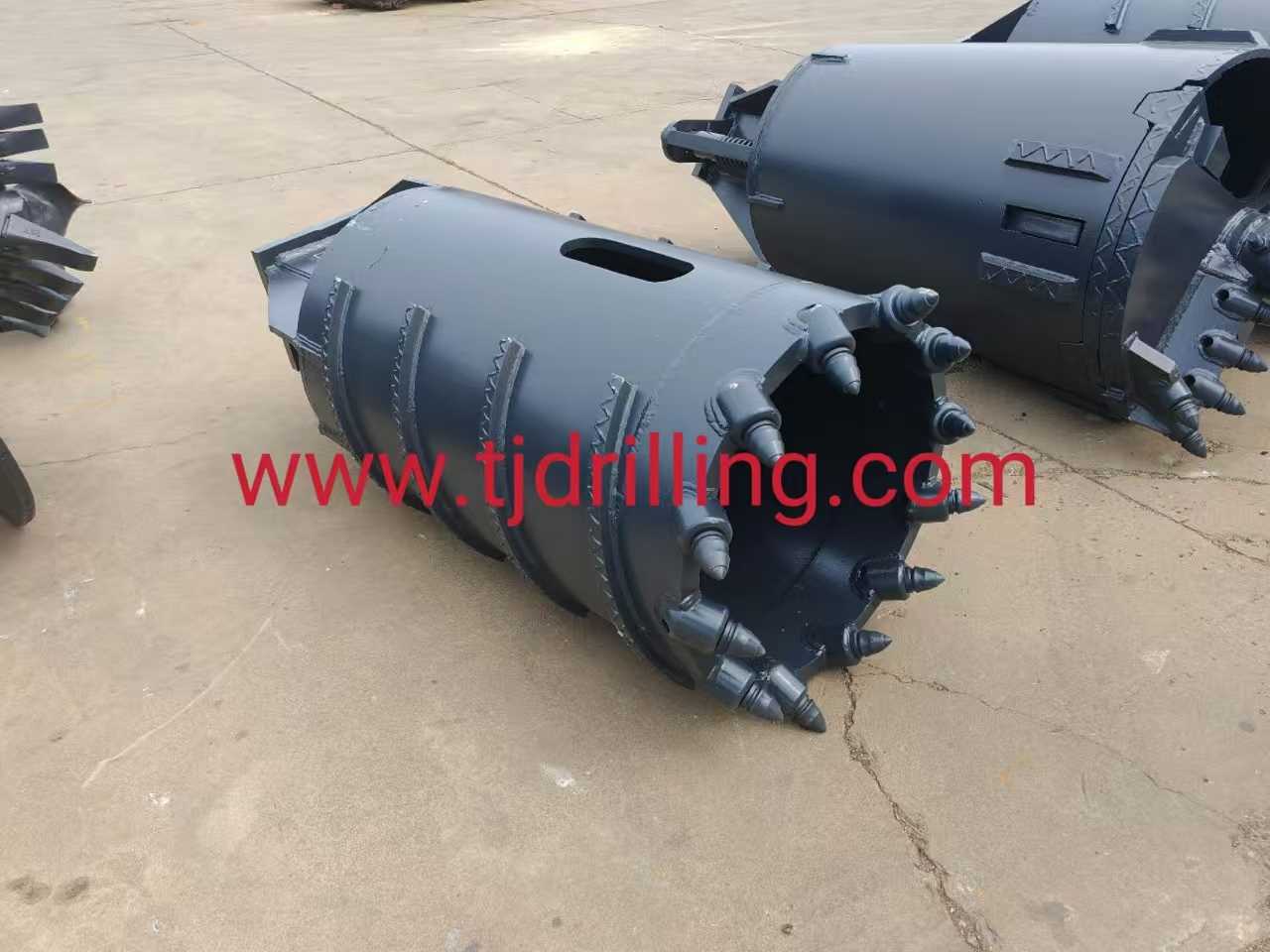

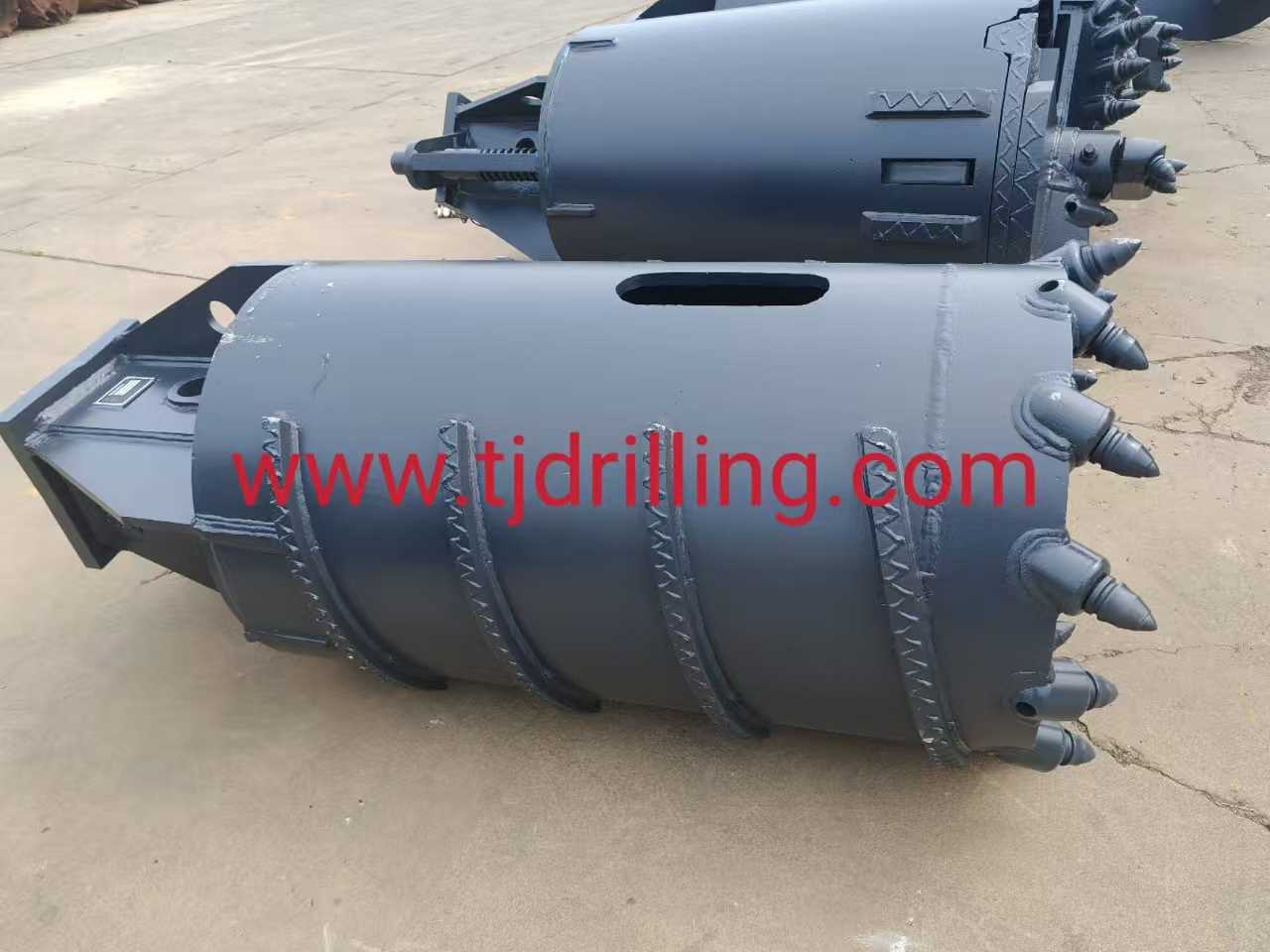

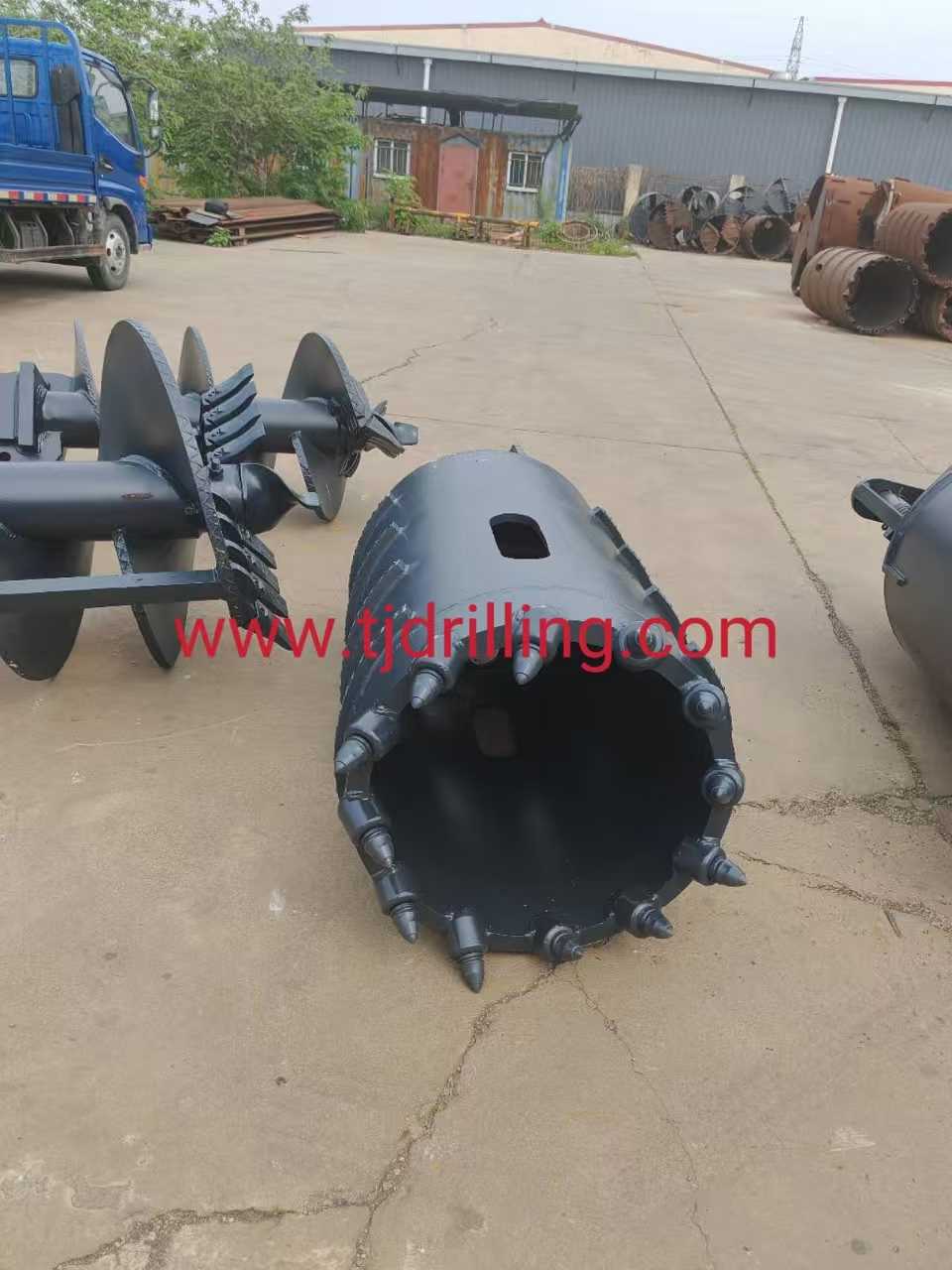

800mm core barrel with round shank chisel b47k22h used for 50-100mpa hard rock in bored pile foundation work
Core barrel with round shank chisel Ø = 30/38 mm od800mm for 50-100mpa hard rock in bored pile foundation work
800mm core barrel with round shank chisel b47k19h used for 50-100mpa hard rock in bored pile foundation work
800mm round shank chisel core barrel used for 50-100mpa hard rock in piling foundation work
1000mm core barrel with round shank chisel b47k22h used for 50-100mpa hard rock in bored pile foundation work
1200mm core barrel with round shank chisel b47k22h used for 50-100mpa hard rock in bored pile foundation work match soilmec .casagrande
1500mm core barrel with round shank chisel b47k22h used for 50-100mpa hard rock in bored pile foundation work
2000mm core barrel with round shank chisel b47k22h used for 50-100mpa hard rock in bored pile foundation work
800mm core barrel with round shank chisel B40K12 for 50-100mpa hard rock for bored pile
800mm core barrel with round shank chisel c31hd teeth for 50-100mpa hard rock for bored pile foundation work
MAIN USE ¡¤ Suitable for drilling in stratifi cation with hardness range of 50 ¨C 100 MPa ¡¤ Suitable for cutting through and fractured strong rock
TECHNICAL SPECIFICATIONS
Kelly box
200x200 mm made of heat-treated cast steel
130mm made of heat-treated cast steel
150mm made of heat-treated cast steel
Core barrel is used for cutting annular ring in rock, concrete and in steel reinforced concrete; consequentially the centre core can be broken using chisel, rock auger or Cross Core Barrel. Using core barrel is possible to increase considerably pressure and torque on the cutting ring which can be equipped with different type of round shank chisel, quick change bars and roller bits. Core Their dimensions can be changed on Client needs and they are available on request
Kelly box: 130-150-200 - other available upon request
Cutting ring with round shank picks with picks holders welded to the base ring.
Teeth: B47K22H or B40K12
other available upon request.
Wear protection: hard facing (standard)
or wear stripe (optional)
|
D |
T1mm |
T2mm |
H1 |
H |
KELLY BOX |
kg |
|
600 |
20 |
40 |
1200 |
1800 |
200 |
578 |
|
800 |
20 |
40 |
1200 |
1800 |
200 |
772 |
|
1000 |
20 |
40 |
1200 |
1800 |
200 |
965 |
|
1200 |
20 |
40 |
1200 |
1800 |
200 |
1175 |
|
1500 |
20 |
40 |
1200 |
1800 |
200 |
1525 |
