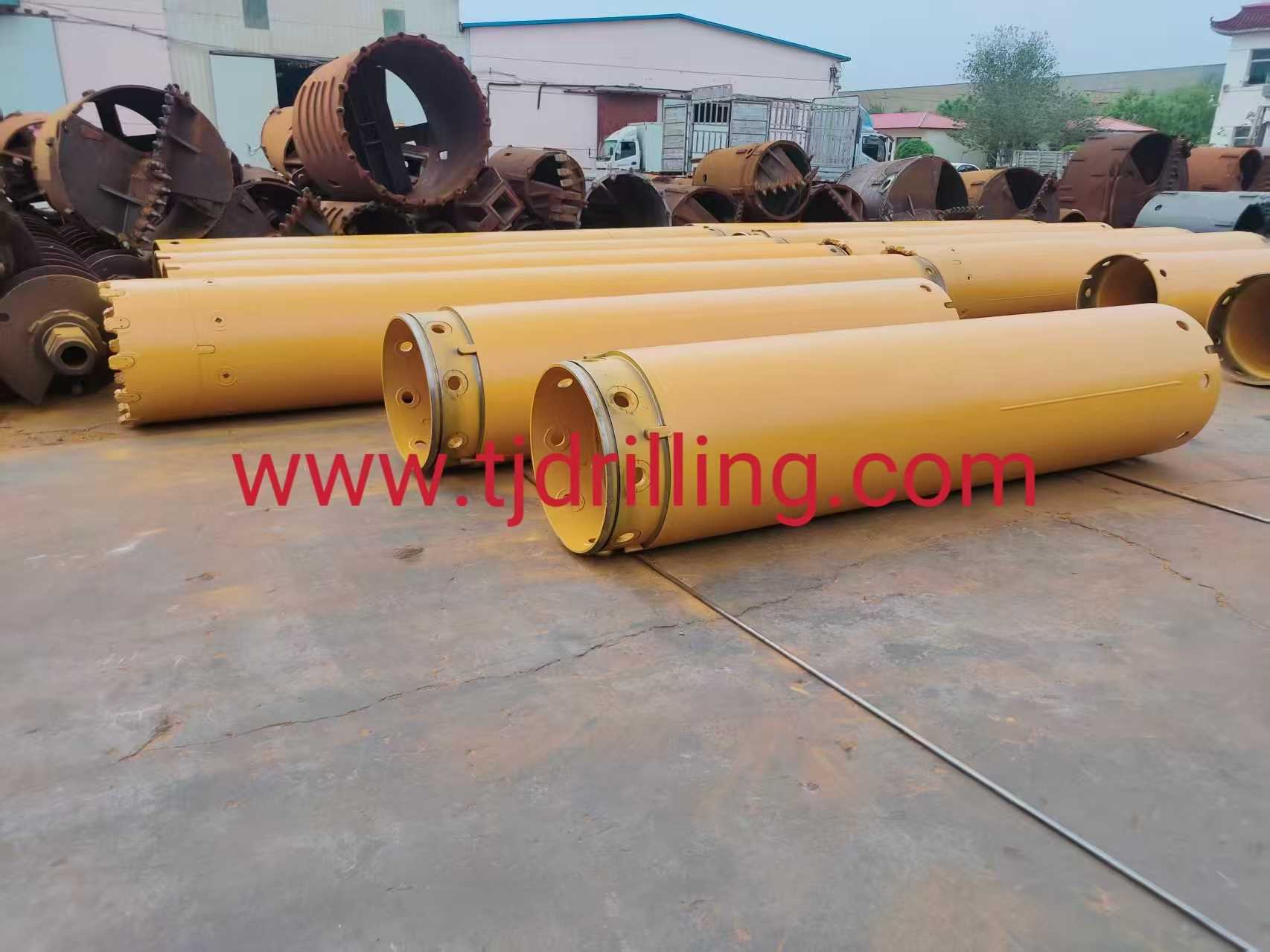

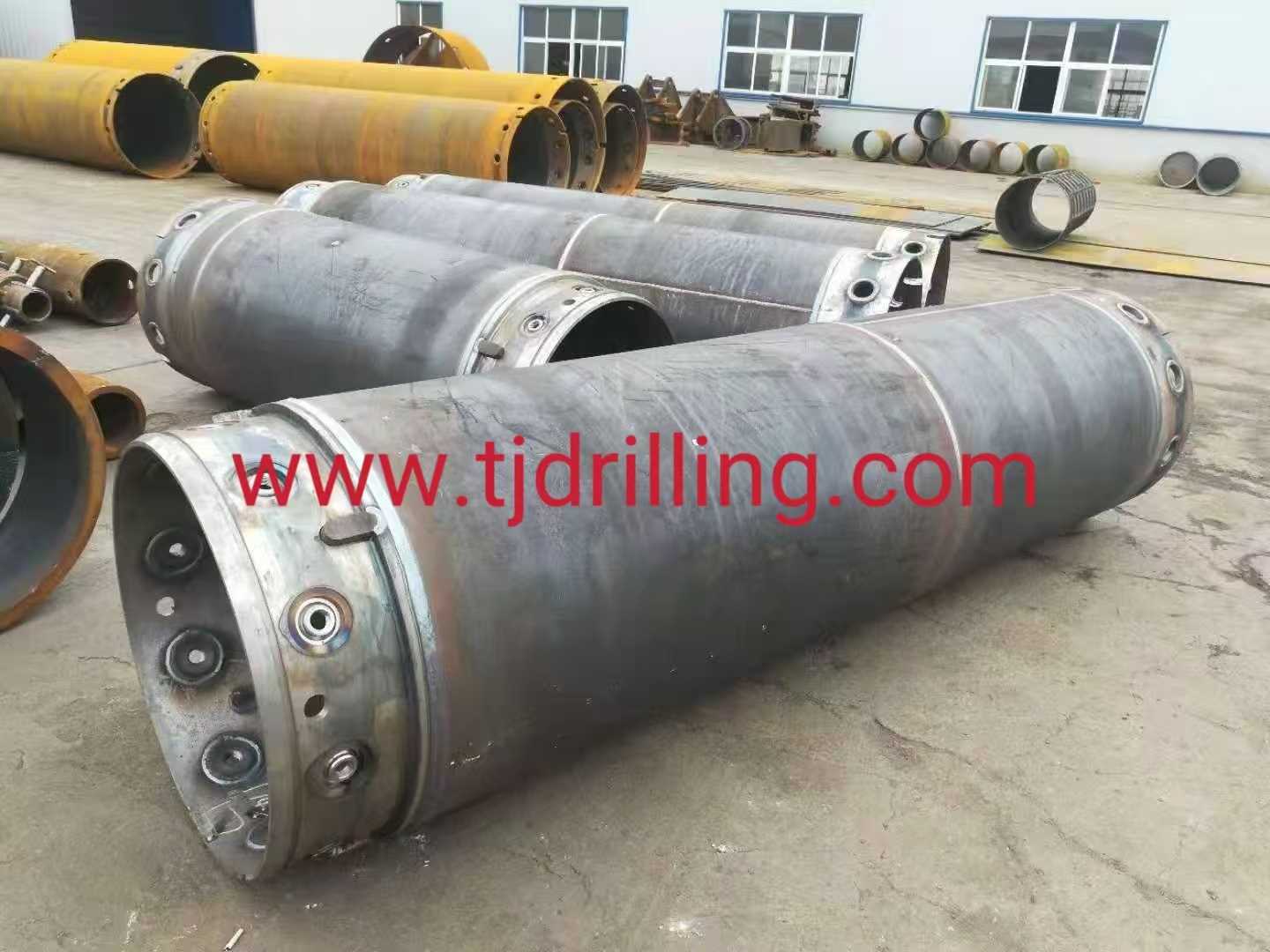

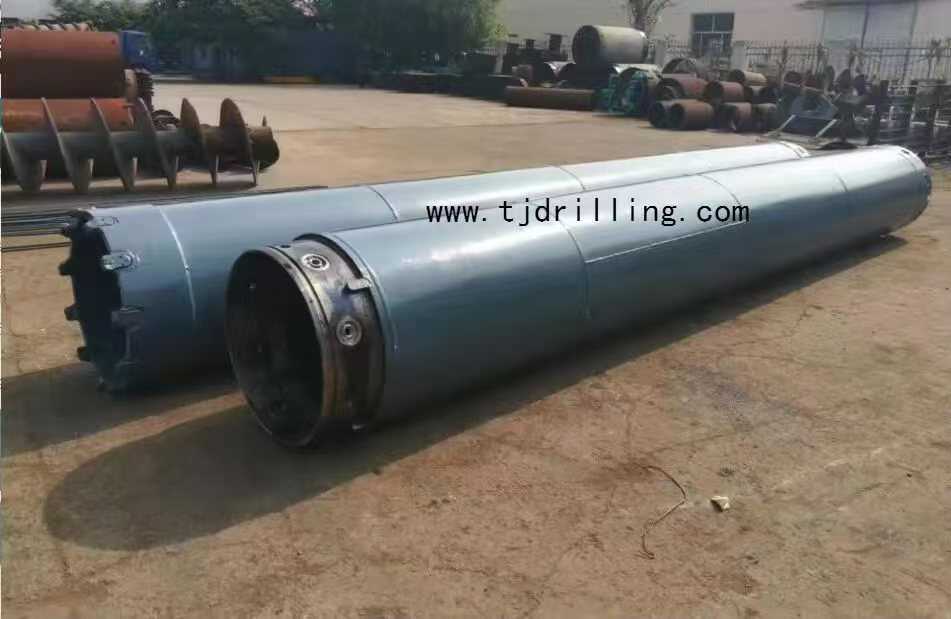

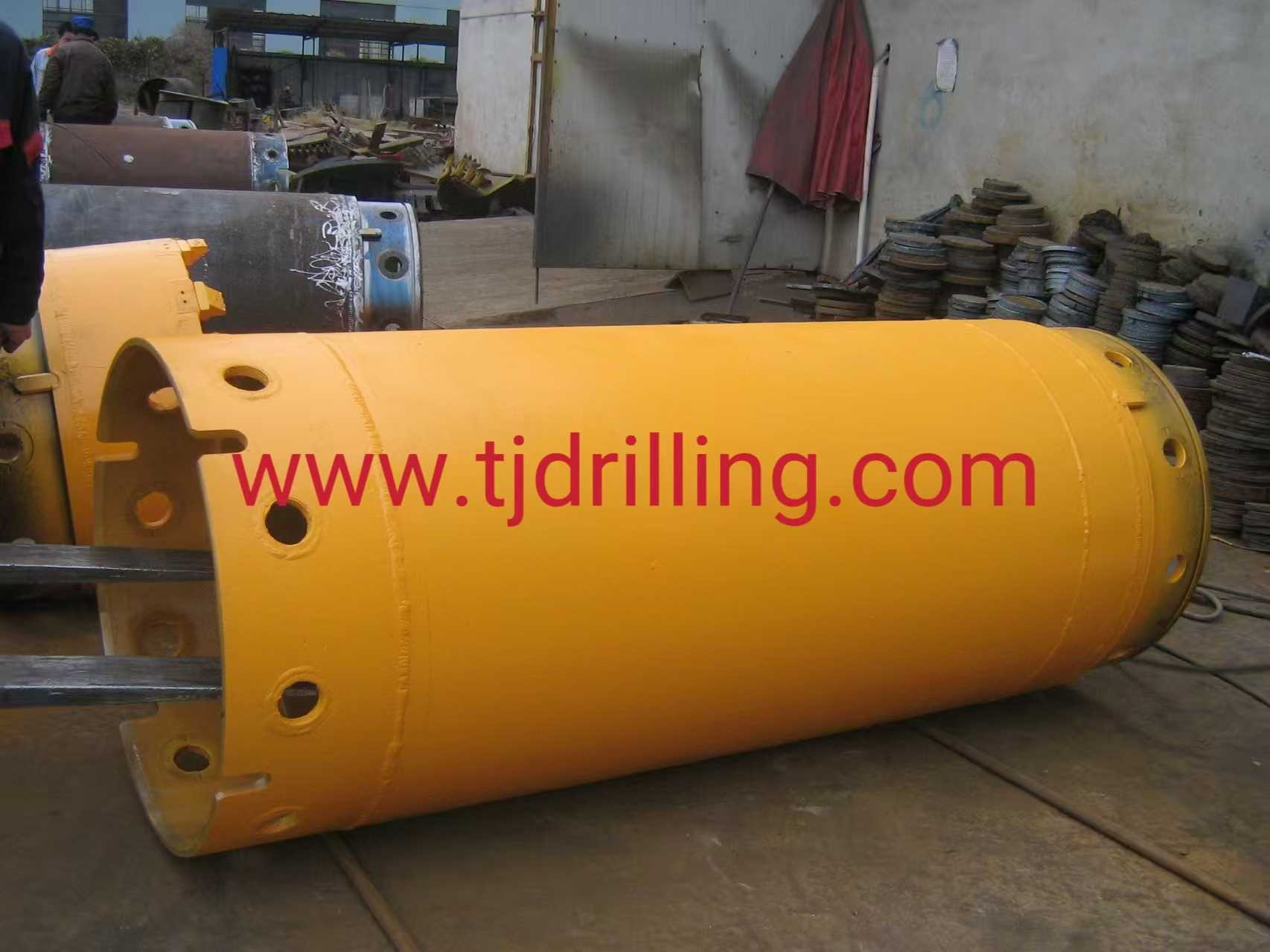

880/800mm Single Wall Casing Pile with Bauer-Screw Joint Thickness 20mm for Soil
详细信息
800mm single wall casing with bauer-screw joint thickness 20mm for soilmec sr30 drill rig for cased bored pile foundation work880/800mm single wall casing pile with bauer-screw joint thickness 20mm for soilmec sr40 drill rig for cased bored pile foundation work
880/800mm single wall casing pile with bauer-screw joint thickness 20mm for soilmec sr45 drill rig for cased bored pile foundation work
800mm single wall casing with bauer-screw joint thickness 20mm for soilmec sr60 drill rig for cased bored pile foundation work
800mm single wall casing with bauer-screw joint thickness 20mm for soilmec sr65 drill rig for cased bored pile foundation work
800mm single wall casing with bauer-screw joint thickness 20mm for soilmec sr50 drill rig for cased bored pile foundation work
| name | OD | ID | a1 | t | L1 | L m | kg |
| Single wall casing | 750 | 670 | 20 | 40 | 232 | 1 | 520 |
| 232 | 3 | 1240 | |||||
| 232 | 4 | 1600 | |||||
| 232 | 6 | 2320 |
In foundation engineering and deep drilling, single-wall casing is a specialized steel pipe used to stabilize boreholes in unstable soil conditions. Unlike double-wall versions, which feature an inner and outer shell, single-wall casing consists of a single layer of high-strength steel.
Technical Characteristics
Structure: It is a single-thickness steel tube, often reinforced at the ends with "male" and "female" joints (conical rings) for interlocking multiple sections.
Weight: It is significantly lighter than double-wall casing, which makes it easier to transport and handle with smaller cranes or drilling rigs.
Inner Diameter: Because there is no cavity between walls, the inner diameter is larger relative to the outer diameter compared to double-wall versions, allowing for slightly larger tools or reinforcement cages.
Common Applications
Single-wall casing is typically used in specific geotechnical scenarios:
Temporary Support: It is often used as "temporary casing" that is extracted after the concrete is poured.Stable to Semi-Stable Soils: It is ideal for ground conditions where the lateral pressure isn't extreme enough to require the heavy-duty rigidity of double-wall pipes.
Short to Medium Depths: Due to its lower torsional stiffness, it is generally used for shallower boreholes where high-torque oscillator forces are not as intense.
Single-Wall vs. Double-Wall Casing
| Feature | Single-Wall Casing | Double-Wall Casing |
| Durability | Lower; prone to deformation under high torque. | High; designed for high-torque oscillators. |
| Weight | Lightweight; easier to maneuver. | Heavy; requires high-capacity lifting. |
| Flush Surface | Usually has external joints or ribs. | Smooth inner and outer surfaces (flush-jointed). |
| Soil Type | Soft to medium-dense soils. | Harsh conditions, boulders, or very deep piles. |
| Cost | More economical per meter. | Higher initial investment. |
Weld-on Joints: Sections are welded together for permanent applications.
Bolt/Pin Connections: Uses a mechanical locking system for quick assembly and disassembly during temporary piling.
Clutch/Threaded Joints: Specialized joints that allow the casing to be rotated into the ground by the drilling rig's rotary head.
1000mm single wall casing with bauer-screw joint thickness 20mm for bauer-bg26drill rig for cased bored pile foundation work
